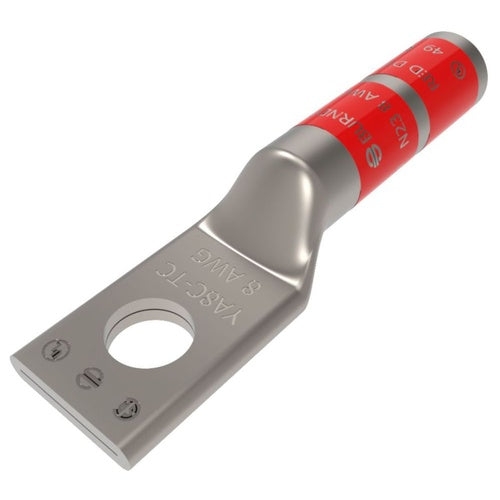

Burndy YA8C-TC10 8Awg Copper 1-Hole Lug

Overview

Burndy YA8C-TC10 8Awg Copper 1-Hole Lug

Product Specifications

• Catalog Description: 8 AWG CU, ONE HOLE, #10 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV,RED COLOR CODE, 49 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Red Color; 1.57 Inch Overall Length; 0.81 Inch Barrel Length; Copper Conductor Material; UL 467, CSA Approval; 600 V to 35 kV Voltage Rating; 37/24, 8 AWG (Weld), 6 AWG Solid, 8 AWG Solid/Stranded (Code) Conductor Size; #10 Stud Size; 49 Die Index; 0.41 Inch W X 0.08 Inch Thk Pad Size; 1 Pad Hole(S); Long, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 7/8 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-TC Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810019078
• SKU Name: bur ya8ctc10

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
