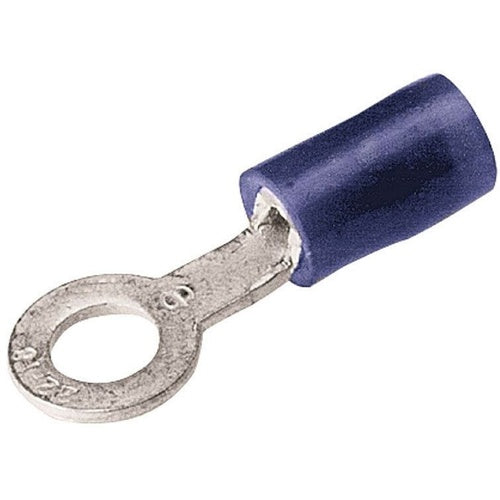

Burndy YAES14-N6 16-14Ins Ring Lug

Overview

Burndy YAES14-N6 16-14Ins Ring Lug

Product Specifications

• UPC: 78181080512
• Stud Size: #4 TO #6
• Temperature Rating: 105 DEG C
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; SIZE 0.79 INCH L X 0.25 INCH W; MATERIAL ELECTROLYTIC TIN PLATED COPPER; WIRE STRIP LENGTH 7/32 INCH; MAXIMUM INSULATION DIAMETER 0.153 INCH; PACKAGING TYPE BULK
• Catalog Number: YAES14N6
• Brand Name: INSULUG[T], BURNDY[R]
• Model: YAES
• Type: SMOOTH FUNNEL ENTRY, BRAZED SEAM BARREL, HEAVY DUTY
• Minimum Conductor Size: 16 AWG SOLID/STRANDED (COPPER)
• Maximum Conductor Size: 14 AWG SOLID/STRANDED (COPPER)
• Color: BLUE
• Insulation Type: NYLON INSULATED
• Catalog Description: NYLON INSULATED CU TERMINAL, #16 - #14 AWG STR.
• Category: Large Terminals & Connectors
• Full Technical Description: Smooth Funnel Entry, Brazed Seam Barrel, Heavy Duty Type; Blue Color; 16 AWG Solid/Stranded (Copper) min. Conductor Size; 14 AWG Solid/Stranded (Copper) Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; #4 to #6 Stud Size; Nylon Insulated Insulation Type; INSULUG[T], BURNDY[R] Brand; RoHS Compatible; Size 0.79 Inch L X 0.25 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 7/32 Inch; Maximum Insulation Diameter 0.153 Inch; Packaging Type Bulk; YAES Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810805121
• SKU Name: bur yaes14n6
