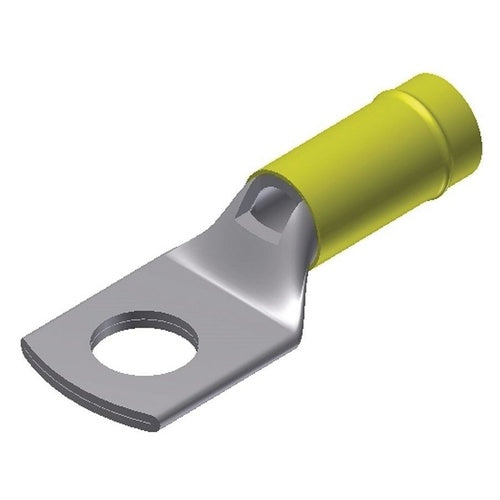

Burndy YAEV10-T11 12-10 Ring Lug

Overview

Burndy YAEV10-T11 12-10 Ring Lug

Product Specifications

• UPC: 78181002785
• Stud Size: #6 to #8
• Temperature Rating: 105 Deg C
• Approval: UL
• Additional Information: RoHS Compatible; Dimension 1.16 Inch L x 0.37 Inch W; Seamless Barrel; Material Electrolytic Tin Plated Copper; Wire Strip Length 5/16 Inch; Maximum Insulation Diameter 0.209 Inch
• Catalog Number: YAEV10T11
• Brand Name: INSULUG[TM]
• Model: YAEV
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Nylon Insulated
• Catalog Description: RING TONGUE COPPER TUBING TERMINAL, CODE: YELLOW, #6-#8 STUD, 1.14 IN L, .37 IN W, 300 VOLTS MAX., 105 DEG C MAX.
• Category: Large Terminals & Connectors
• Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL Approval; 105 Deg C Temperature Rating; #6 to #8 Stud Size; Nylon Insulated Insulation Type; INSULUG[TM] Brand; RoHS Compatible; Dimension 1.16 Inch L X 0.37 Inch W; Seamless Barrel; Material Electrolytic Tin Plated Copper; Wire Strip Length 5/16 Inch; Maximum Insulation Diameter 0.209 Inch; YAEV Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810027851
• SKU Name: bur yaev10t11
