Burndy YAEV10T4 12-10 Ring Lug

Name: Burndy YAEV10T4 12-10 Ring Lug
Brand: Industrial Fittings Now
Price: 1.48 USD

Quantity

Industrial Fittings Now

Product Description

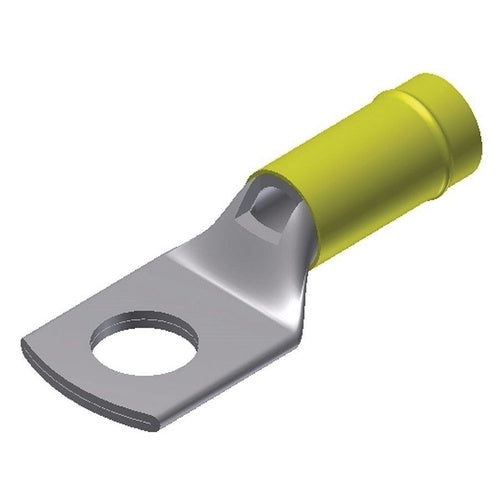

Catalog Description: NYLON RING TERMINAL FOR 12 - 10 AWG.
Full Technical Description: Seamless Barrel, Double Thick Tongue Type; Yellow Color; 12 AWG (Aircraft), 12 AWG Stranded (Copper) min. Conductor Size; 10 AWG Stranded (Copper), 10 AWG (Aircraft) Max. Conductor Size; UL Approval; 105 Deg C Temperature Rating; 3/8 Inch Stud Size; Nylon Insulated Insulation Type; INSULUG[T], BURNDY[R] Brand; RoHS Compatible; Size 1.38 Inch L X 0.56 Inch W; Material Electrolytic Tin Plated Copper; Voltage Rating 300 V; Outer Diameter 0.295; Wire Strip Length 5/16 Inch; Maximum Insulation Diameter 0.209 Inch; Die Index 311; Packaging Type Bulk; YAEV Model
Manufacturer: BURNDY PRODUCTS
Sub Category: Ring Lug
Unspsc: 39121405
UPC 12 Digit: 781810027837
SKU Name: bur yaev10t4
