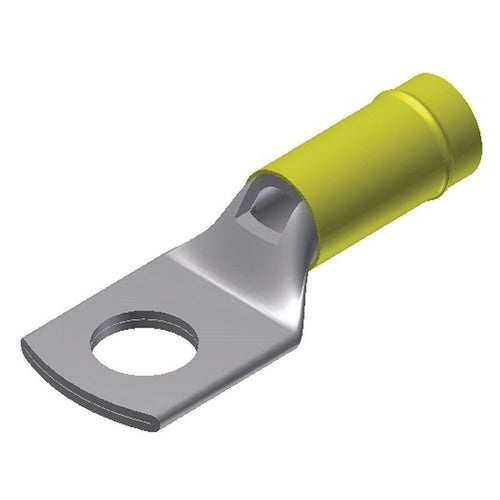

Burndy YAEV10-T7 12-10 Ring Lug

Overview

Burndy YAEV10-T7 12-10 Ring Lug

Product Specifications

• UPC: 78181002784
• Stud Size: #4 TO #6
• Temperature Rating: 105 DEG C
• Approval: UL
• Additional Information: ROHS COMPATIBLE; SIZE 1.11 INCH L X 0.3 INCH W; MATERIAL ELECTROLYTIC TIN PLATED COPPER; VOLTAGE RATING 300 V; OUTER DIAMETER 0.295; WIRE STRIP LENGTH 5/16 INCH; MAXIMUM INSULATION DIAMETER 0.209 INCH; DIE INDEX 311; PACKAGING TYPE BULK
• Catalog Number: YAEV10T7
• Brand Name: INSULUG[T], BURNDY[R]
• Model: YAEV
• Type: SEAMLESS BARREL, DOUBLE THICK TONGUE
• Minimum Conductor Size: 12 AWG (AIRCRAFT), 12 AWG STRANDED (COPPER)
• Maximum Conductor Size: 10 AWG STRANDED (COPPER), 10 AWG (AIRCRAFT)
• Color: YELLOW
• Insulation Type: NYLON INSULATED
• Catalog Description: COPPER LUG, RING TONGUE, 1 HOLE W/ INSPECTION HOLE, AN 12-10, #4-#5 STUD, INSULATED, SHORT BARREL, TIN PLATED, 600 VOLTS MAX.
• Category: Large Terminals & Connectors
• Full Technical Description: Seamless Barrel, Double Thick Tongue Type; Yellow Color; 12 AWG (Aircraft), 12 AWG Stranded (Copper) min. Conductor Size; 10 AWG Stranded (Copper), 10 AWG (Aircraft) Max. Conductor Size; UL Approval; 105 Deg C Temperature Rating; #4 to #6 Stud Size; Nylon Insulated Insulation Type; INSULUG[T], BURNDY[R] Brand; RoHS Compatible; Size 1.11 Inch L X 0.3 Inch W; Material Electrolytic Tin Plated Copper; Voltage Rating 300 V; Outer Diameter 0.295; Wire Strip Length 5/16 Inch; Maximum Insulation Diameter 0.209 Inch; Die Index 311; Packaging Type Bulk; YAEV Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810027844
• SKU Name: bur yaev10t7

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
