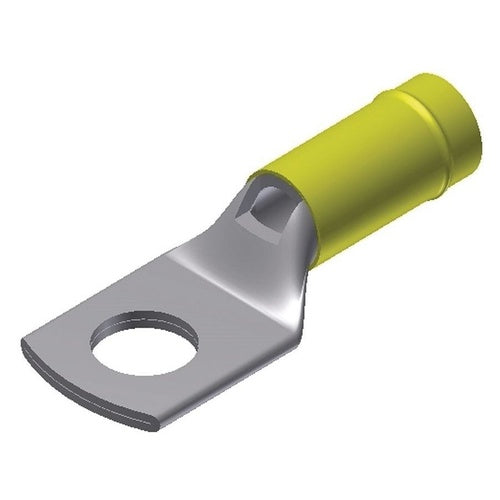

Burndy YAEV4-CL4 Bulk Lug

Overview

Burndy YAEV4-CL4 Bulk Lug

Product Specifications

• UPC: 78181002763
• Temperature Rating: 105 Deg C
• Approval: UL
• Additional Information: RoHS Compatible; Dimension 1.74 Inch L x 0.63 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 1/2 Inch; Maximum Insulation Diameter 0.374 Inch
• Catalog Number: YAEV4CL4
• Brand Name: INSULUG[TM]
• Model: YAEV-L
• Type: Seamless Barrel, Double Thick Tongue
• Maximum Conductor Size: 4 AWG Stranded (Copper), 4 AWG (Aircraft)
• Color: Yellow
• Insulation Type: Nylon Insulated
• Stud Size: 5/16 Inch
• Catalog Description: COPPER LUG, RING TONGUE, 1 HOLE W/ INSPECTION HOLE, 4 AWG, 5/16" STUD, INSULATED, SHORT BARREL, TIN PLATED, 600 VOLTS MAX.
• Category: Large Terminals & Connectors
• Full Technical Description: Seamless Barrel, Double Thick Tongue Type; Yellow Color; 4 AWG Stranded (Copper), 4 AWG (Aircraft) Max. Conductor Size; UL Approval; 105 Deg C Temperature Rating; 5/16 Inch Stud Size; Nylon Insulated Insulation Type; INSULUG[TM] Brand; RoHS Compatible; Dimension 1.74 Inch L X 0.63 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 1/2 Inch; Maximum Insulation Diameter 0.374 Inch; YAEV-L Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810027639
• SKU Name: bur yaev4cl4
