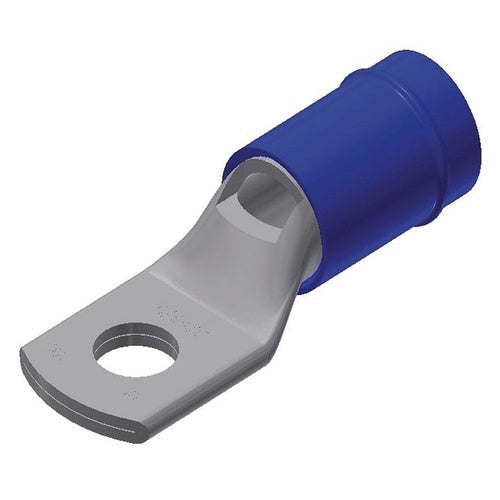

Burndy YAEV6-CL Bulk Lug

Overview

Burndy YAEV6-CL Bulk Lug

Product Specifications

• UPC: 78181002770
• Temperature Rating: 105 DEG C
• Approval: UL
• Additional Information: ROHS COMPATIBLE; SIZE 1.56 INCH L X 0.48 INCH W; MATERIAL ELECTROLYTIC TIN PLATED COPPER; VOLTAGE RATING 300 V; WIRE STRIP LENGTH 1/2 INCH; MAXIMUM INSULATION DIAMETER 0.313 INCH; PACKAGING TYPE BULK
• Catalog Number: YAEV6CL
• Brand Name: INSULUG[T], BURNDY[R]
• Model: YAEV-L
• Type: SEAMLESS BARREL, DOUBLE THICK TONGUE
• Maximum Conductor Size: 6 AWG STRANDED (COPPER), 6 AWG (AIRCRAFT)
• Color: BLUE
• Insulation Type: NYLON INSULATED
• Stud Size: 1/4 INCH
• Catalog Description: COPPER TERMINAL, RING TONGUE W/ INSPECTION HOLE, WIRE RANGE 6 AWG, 1/4" STUD, NYLON INSULATED, SHORT BARREL, TIN PLATED, 600 VOLTS MAX.
• Category: Large Terminals & Connectors
• Full Technical Description: Heavy Duty Type; Blue Color; 6, An 6 (Aircraft) Max. Conductor Size; UL 486 Approval; 105 Deg C Temperature Rating; 800 Per Pallet Standard Package; 1/4 Inch Stud Size; Nylon Insulated Insulation Type; INSULUG[TM] Brand; Voltage Rating 600 Volt; Overall Length 1.56 Inch; Material Copper
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810027707
• SKU Name: bur yaev6cl
