Burndy YAV10R3BOX 10-12 Ring Lug

Overview

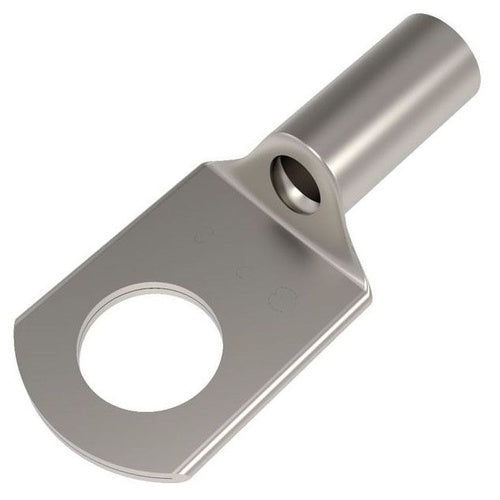

Burndy YAV10R3BOX 10-12 Ring Lug

Product Specifications

• Catalog Description: UNINSULATED RING TERMINAL FOR 12 - 10 AWG.
• Category: Large Terminals & Connectors
• Full Technical Description: Heavy Duty, Right Angled Type; 12 AWG Solid (Copper), 14 AWG Stranded (Copper), 12 AWG (Aircraft) min. Conductor Size; 10 AWG Solid/Stranded (Copper), 10 AWG (Aircraft) Max. Conductor Size; UL, CSA Approval; 1/4 Inch Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 0.55 Inch L X 0.47 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 5/16 Inch; YAV-R Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810541616
• SKU Name: bur yav10r3box

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
