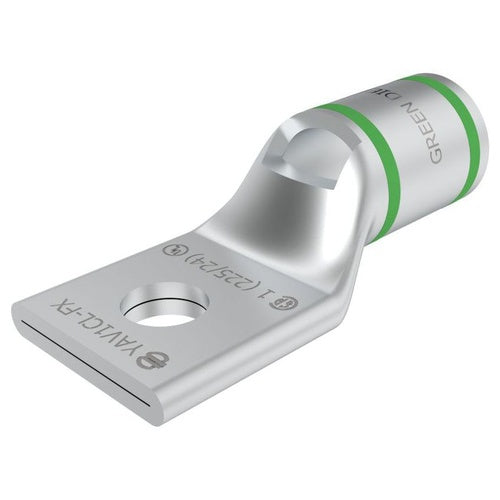

Burndy YAV1CLTC14FX 1-Hole Terminal Lug

Overview

Burndy YAV1CLTC14FX 1-Hole Terminal Lug

Product Specifications

• Catalog Description: 1 FLEX G,H,I,K,M,DLO, 1 AWG (B/C) CU, ONE HOLE, 1/4 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GREEN COLOR CODE, 11 OR 375 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Green Color; 1.65 Inch Overall Length; 0.62 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 175/24, 225/24 Diesel Locomotive Cable, 1 AWG Class G/H/I (Weld Flex), 1 AWG Stranded Conductor Size; 1/4 Inch Stud Size; 11 Die Index; 0.75 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Short, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 11/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YAV-L-FX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810022900
• SKU Name: bur yav1cltc14fx

Resources

• Manufacturer Spec Sheet
