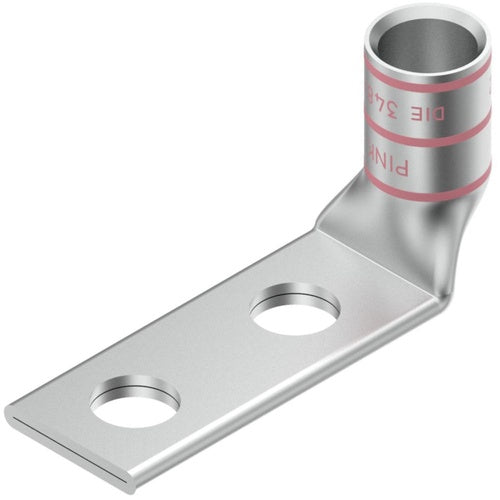

Burndy YAV25L-2TC38FX-90 1/0Flex2-3/8

Overview

Burndy YAV25L-2TC38FX-90 1/0Flex2-3/8

Product Specifications

• UPC: 78181003450
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 INCH
• Stud Size: 3/8 INCH
• Color: PINK
• Die Index: 12
• Material: ELECTROLYTIC TIN PLATED SEAMLESS COPPER
• Overall Length: 2.23 INCH
• Approval: UL 486-A, CSA
• Additional Information: WITH INSPECTION WINDOW
• Catalog Number: YAV25L2TC38FX90
• Brand Name: HYLUG[T]
• Model: YAV-L-2TC-FX
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 275/24, 1/0 AWG, 1/0 AWG (WELD)
• Barrel Type: 90 DEG STANDARD
• Pad Size: 0.83 INCH W
• Catalog Description: CU TUBING HYLUG, 2 HOLES WITH INSPECTION WINDOW, 1/0 AWG FLEX,100 NAVY, 600V-35KV, 3/8" STUD, STANDARD, COMPRESSION, 0.40 IN BCD, PINK.
• Category: Large Terminals & Connectors
• Full Technical Description: Electrolytic Tin Plated Seamless Copper Material; Pink Color; 2.23 Inch Overall Length; Copper Conductor Material; UL 486-A, CSA Approval; 600 V to 35 kV Voltage Rating; 275/24, 1/0 AWG, 1/0 AWG (Weld) Conductor Size; 3/8 Inch Stud Size; 12 Die Index; 0.83 Inch W Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; 90 Deg Standard Barrel Type; HYLUG[T] Brand; With Inspection Window; YAV-L-2TC-FX Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810034507
• SKU Name: bur yav25l2tc38fx90

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
