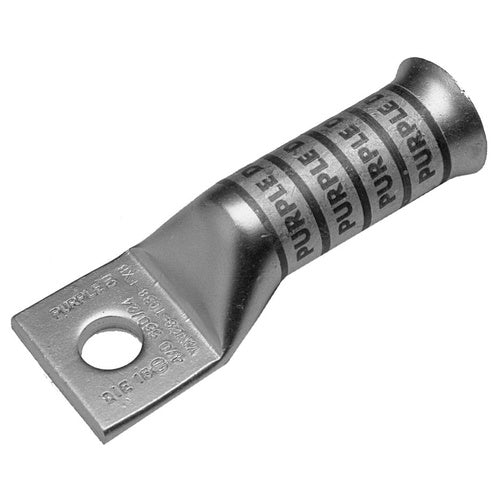

Burndy YAV25TC38FXB 1-Hole Terminal Lug

Overview

Burndy YAV25TC38FXB 1-Hole Terminal Lug

Product Specifications

• Catalog Description: 1/0 FLEX G,H,I,K,M,DLO, 1/0 AWG (B/C) CU, ONE HOLE, 3/8 STUD SIZE, LONG BARREL, BELL END, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, 12 OR 348 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Pink Color; 2.77 Inch Overall Length; 1.5 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 100 (Navy), 275/24 Diesel Locomotive Cable, 1/0 AWG Class G/H/I/M (Weld Flex), 1/0 AWG Stranded Conductor Size; 3/8 Inch Stud Size; 12 Die Index; 0.83 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Long, Belled, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 1-9/16 Inch; YAV-TC-FXB Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810074015
• SKU Name: bur yav25tc38fxb

Resources

• Manufacturer Spec Sheet
