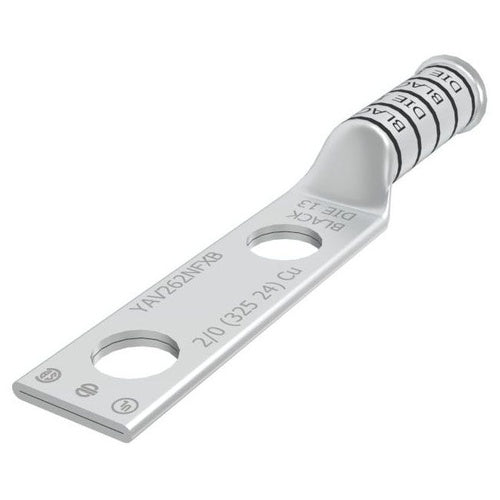

Burndy YAV262NFXB 2-Hole Terminal Lug

Overview

Burndy YAV262NFXB 2-Hole Terminal Lug

Product Specifications

• UPC: 78181006555
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Black
• Die Index: 13
• Material: Electro-Tin Plated Copper
• Overall Length: 5.15 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Connector Type Terminal; Wire Strip Length 1-13/16 Inch; Temperature Rating 90 Deg C
• Catalog Number: YAV262NFXB
• Brand Name: Burndy
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 2/0 AWG (375/24) Diesel Locomotive Cable, 2/0 AWG Class G/H/I/K/M (Flex), 2/0 AWG Stranded
• Barrel Type: Long, Belled, Straight
• Barrel Length: 1.63 Inch
• Pad Size: 0.93 Inch Width x 0.13 Inch Thickness
• Catalog Description: 2/0 FLEX G,H,I,K,M,DLO, 2/0 AWG CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL, BELL END, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLACK COLOR CODE, 13 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Black Color; 5.15 Inch Overall Length; 1.63 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 2/0 AWG (375/24) Diesel Locomotive Cable, 2/0 AWG Class G/H/I/K/M (Flex), 2/0 AWG Stranded Conductor Size; 1/2 Inch Stud Size; 13 Die Index; 0.93 Inch Width X 0.13 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Belled, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compliant; Connector Type Terminal; Wire Strip Length 1-13/16 Inch; Temperature Rating 90 Deg C
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810065556
• SKU Name: bur yav262nfxb

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
