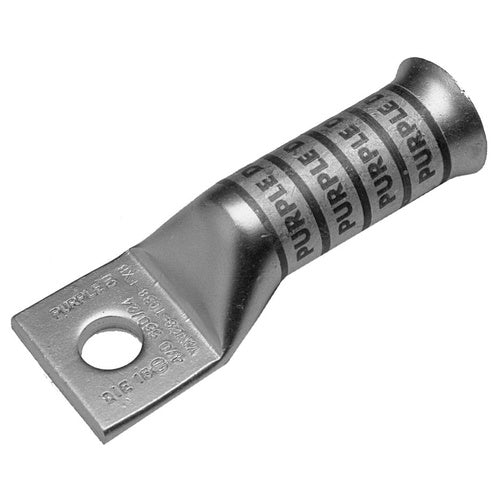

Burndy YAV26TC12FXB 1-Hole Terminal Lug

Overview

Burndy YAV26TC12FXB 1-Hole Terminal Lug

Product Specifications

• Catalog Description: 2/0 FLEX G,H,I,K,M,DLO, 2/0 AWG CU, ONE HOLE, 1/2 STUD SIZE, LONG BARREL, BELL END, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLACK COLOR CODE, 13 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Black Color; 3.39 Inch Overall Length; 1.63 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 125 (Navy), 352/24 Diesel Locomotive Cable, 2/0 AWG Class G/H/I/M (Weld Flex), 2/0 AWG Stranded Conductor Size; 1/2 Inch Stud Size; 13 Die Index; 0.93 Inch W X 0.13 Inch Thk Pad Size; 1 Pad Hole(S); Long, Belled, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 1-13/16 Inch; YAV-TC-FXB Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810065549
• SKU Name: bur yav26tc12fxb

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
