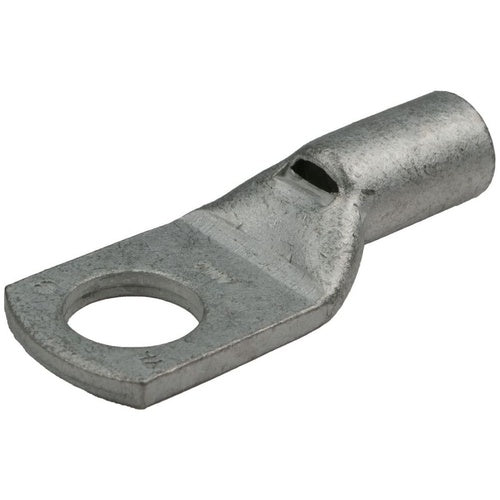

Burndy YAV27L1BOX 3/0Awg Ring Lug

Overview

Burndy YAV27L1BOX 3/0Awg Ring Lug

Product Specifications

• UPC: 78181054045
• Additional Information: ROHS COMPATIBLE; SIZE 2.45 INCH L X 1.03 INCH W; MATERIAL ELECTROLYTIC TIN PLATED COPPER; WIRE STRIP LENGTH 13/16 INCH; DIE INDEX 45; USED ON AN TYPE AIRCRAFT CABLE, EXTRA FLEXIBLE CONDUCTOR AND COMMERCIAL CONDUCTOR; PACKAGING TYPE BOX
• Catalog Number: YAV27L1BOX
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YAV-LBOX
• Type: BEVELED ENTRY, SEAMLESS BARREL, HEAVY DUTY, DOUBLE THICK STRAIGHT TONGUE
• Maximum Conductor Size: 3/0 AWG (AIRCRAFT/FLEX)
• Insulation Type: NON INSULATED
• Stud Size: 1/2 INCH
• Approval: UL, CSA
• Catalog Description: COPPER TUBING RING TERMINAL, 3/0 AWG FLEX, 1/2 IN STUD, 2.45 IN L, 1.03 IN W, ELECTRO-TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Beveled Entry, Seamless Barrel, Heavy Duty, Double Thick Straight Tongue Type; 3/0 AWG (Aircraft/Flex) Max. Conductor Size; UL, CSA Approval; 1/2 Inch Stud Size; Non Insulated Insulation Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Size 2.45 Inch L X 1.03 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 13/16 Inch; Die Index 45; Used on An Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor; Packaging Type Box; YAV-LBOX Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810540459
• SKU Name: bur yav27l1box
