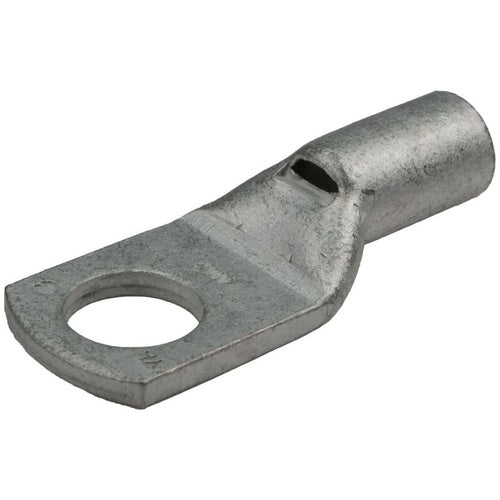

Burndy YAV28L12BOX 4/0Awg Ring Lug

Overview

Burndy YAV28L12BOX 4/0Awg Ring Lug

Product Specifications

• UPC: 78181054060
• Additional Information: RoHS Compatible; Dimension 2.72 Inch L x 1.12 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 7/8 Inch; Die Index 46; Used On AN Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor
• Catalog Number: YAV28L12BOX
• Brand Name: HYLUG[TM]
• Model: YAV-L BOX
• Type: Beveled, Heavy Duty
• Maximum Conductor Size: 4/0 AWG (Aircraft/Flex)
• Insulation Type: Non-Insulated
• Stud Size: 1/2 Inch
• Approval: UL, CSA
• Catalog Description: COPPER TUBING RING TERMINAL, 4/0 AWG FLEX, 1/2 IN STUD, 2.72 IN L, 1.12 IN W, ELECTRO-TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Beveled, Heavy Duty Type; 4/0 AWG (Aircraft/Flex) Max. Conductor Size; UL, CSA Approval; 1/2 Inch Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 2.72 Inch L X 1.12 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 7/8 Inch; Die Index 46; Used on An Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor; YAV-L BOX Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810540602
• SKU Name: bur yav28l12box
