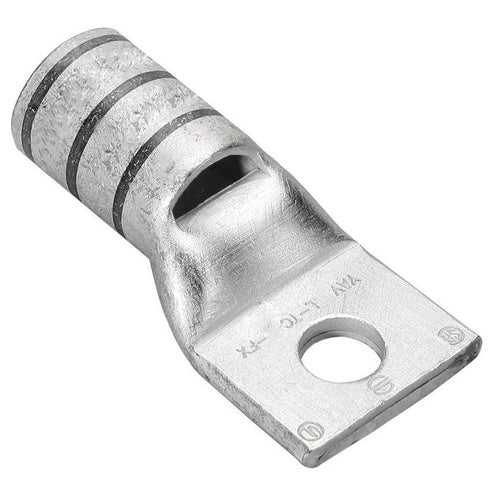

Burndy YAV2CL-TC14-FX 1-Hole Compression Terminal

Overview

Burndy YAV2CL-TC14-FX 1-Hole Compression Terminal

Product Specifications

• UPC: 78181002238
• Pad Size: 0.68 Inch W x 0.1 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Brown
• Die Index: 10
• Material: Electro-Tin Plated Copper
• Overall Length: 1.62 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 11/16 Inch; Cable Entry Type Beveled Entry, Chamfered
• Catalog Number: YAV2CLTC14FX
• Brand Name: HYLUG[TM]
• Model: YA-L-FX
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 125/24 to 150/24 Diesel Locomotive Cable, 2 AWG Class G/H/I (Weld Flex), 2 AWG Solid/Stranded
• Barrel Type: Short, Standard, Straight
• Barrel Length: 0.63 Inch
• Catalog Description: COPPER COMPRESSION LUG, 1 HOLE W/ INSPECTION WINDOW, 2 FLEX, 1/4" STUD, SHORT BARREL, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Brown Color; 1.62 Inch Overall Length; 0.63 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 125/24 to 150/24 Diesel Locomotive Cable, 2 AWG Class G/H/I (Weld Flex), 2 AWG Solid/Stranded Conductor Size; 1/4 Inch Stud Size; 10 Die Index; 0.68 Inch W X 0.1 Inch Thk Pad Size; 1 Pad Hole(S); Short, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 11/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-L-FX Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810022382
• SKU Name: bur yav2cltc14fx

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
