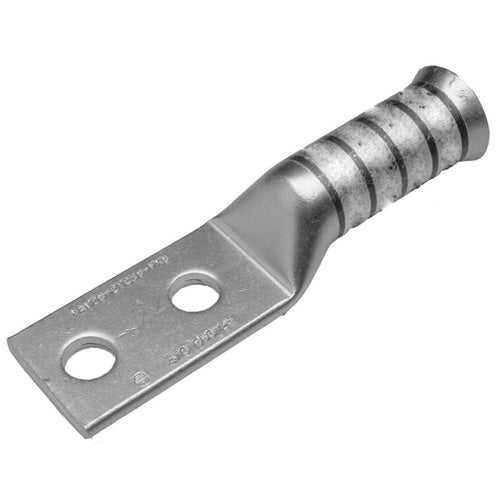

Burndy YAV6C2TC38FXB 2-Hole Terminal Lug

Overview

Burndy YAV6C2TC38FXB 2-Hole Terminal Lug

Product Specifications

• Catalog Description: 6 FLEX G,H,I,K,M,DLO, 6 AWG CU, TWO HOLE, 3/8 STUD SIZE, 1 HOLE SPACING, LONG BARREL, BELL END, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 7 OR 374 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Blue Color; 3.32 Inch Overall Length; 1.22 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 61/24 Diesel Locomotive Cable, 6 AWG Class G/H/I/M (Weld Flex), 6 AWG Stranded Conductor Size; 3/8 Inch Stud Size; 7 Die Index; 0.58 Inch W X 0.06 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Belled, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 1-5/16 Inch; Cable Entry Type Beveled Entry; YAV-2TC-FXB Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810138182
• SKU Name: bur yav6c2tc38fxb

Resources

• Manufacturer Spec Sheet
