Burndy YAZ1C2TC38 1Awg 2-Hole Lng Lug W/Wn

Overview

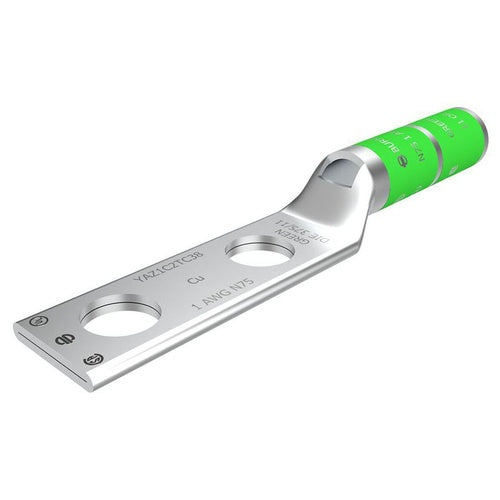

Burndy YAZ1C2TC38 1Awg 2-Hole Lng Lug W/Wn

Product Specifications

• Catalog Description: 1 AWG CU, TWO HOLE, 3/8 STUD SIZE, 1 HOLE SPACING, LONG BARREL, INSPECTION WINDOW INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GREEN COLOR CODE, 11 OR 375 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Green Color; 3.57 Inch Overall Length; 1.38 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 75 (Navy), 1 AWG Stranded (Code) Conductor Size; 3/8 Inch Stud Size; 11/375 Die Index; 0.67 Inch W X 0.1 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-7/16 Inch; YAZ-2TC Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810224311
• SKU Name: bur yaz1c2tc38

Resources

• Manufacturer Spec Sheet
