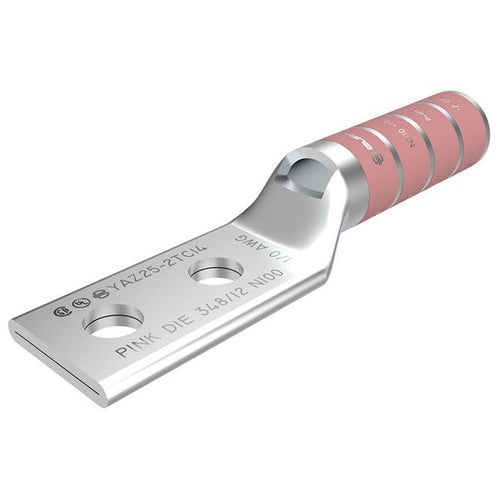

Burndy YAZ252NTC38 1/0Awg 2-Hole Long Lug

Overview

Burndy YAZ252NTC38 1/0Awg 2-Hole Long Lug

Product Specifications

• Catalog Description: 1/0 AWG CU, TWO HOLE, 3/8 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL, INSPECTION WINDOW INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PINNK COLOR CODE, 12 OR 348 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Pink Color; 4.35 Inch Overall Length; 1.38 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 100 (Navy), 1/0 AWG Stranded (Code) Conductor Size; 3/8 Inch Stud Size; 12/348 Die Index; 0.75 Inch W X 0.12 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Skived, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-7/16 Inch; YAZ-2N Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810227824
• SKU Name: bur yaz252ntc38

Resources

• Technical Drawing
• Manufacturer Spec Sheet
