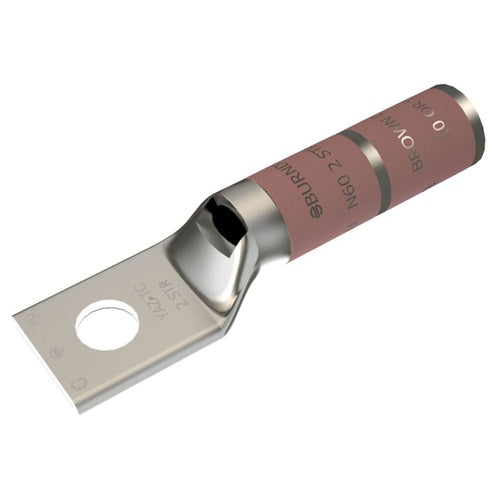

Burndy YAZ2C-TC14 1-Hole Compression Lug 25020353

Overview

Burndy YAZ2C-TC14 1-Hole Compression Lug 25020353

Product Specifications

• UPC: 78181023965
• Pad Size: 0.6 Inch W x 0.11 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Brown
• Die Index: 10
• Material: Electro-Tin Plated Copper
• Overall Length: 2.21 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-5/16 Inch
• Catalog Number: YAZ2CTC14
• Brand Name: HYLUG[TM]
• Model: YAZ
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 60 (Navy), 2 AWG Stranded (Code)
• Barrel Type: Long, Skived, Straight
• Barrel Length: 1.25 Inch
• Catalog Description: 2 AWG CU, ONE HOLE, 1/4 STUD SIZE, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 10 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Brown Color; 2.21 Inch Overall Length; 1.25 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 60 (Navy), 2 AWG Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 10 Die Index; 0.6 Inch W X 0.11 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-5/16 Inch; YAZ Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810239650
• SKU Name: bur yaz2ctc14
