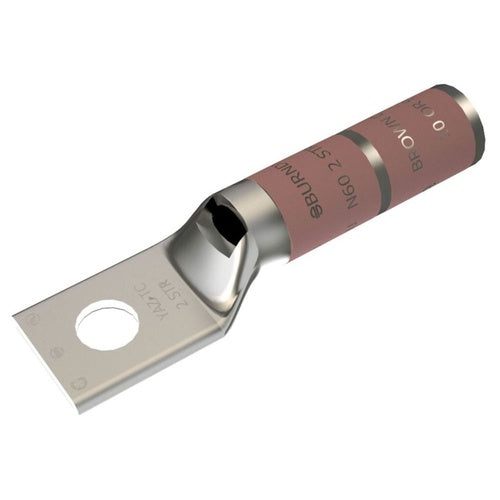

Burndy YAZ2C-TC38 1-Hole Compression Lug 25019667

Overview

Burndy YAZ2C-TC38 1-Hole Compression Lug 25019667

Product Specifications

• UPC: 78181023317
• Pad Size: 0.6 Inch W x 0.11 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Brown
• Die Index: 10
• Material: Electro-Tin Plated Copper
• Overall Length: 2.4 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-5/16 Inch; Cable Entry Type Beveled Entry; Includes Inspection Window; Temperature Rating 90 Deg C
• Catalog Number: YAZ2CTC38
• Brand Name: HYLUG[TM]
• Model: Type YAZ
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 60 (Navy), 2 AWG Stranded (Code)
• Barrel Type: Long, Skived, Straight
• Barrel Length: 1.25 Inch
• Catalog Description: 2 AWG CU, ONE HOLE, 3/8 STUD SIZE, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 10 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Brown Color; 2.4 Inch Overall Length; 1.25 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 60 (Navy), 2 AWG Stranded (Code) Conductor Size; 3/8 Inch Stud Size; 10 Die Index; 0.6 Inch W X 0.11 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; Hylug Brand; RoHS Compliant; Wire Strip Length 1-5/16 Inch; Cable Entry Type Beveled Entry; Includes Inspection Window; Temperature Rating 90 Deg C; TYPE YAZ Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810233177
• SKU Name: bur yaz2ctc38

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
