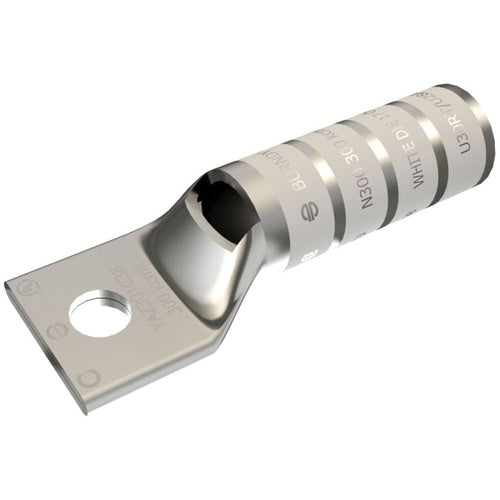

Burndy YAZ30-TC38 1-Hole Compression Lug

Overview

Burndy YAZ30-TC38 1-Hole Compression Lug

Product Specifications

• UPC: 78181024021
• Pad Size: 1.2 INCH W X 0.16 INCH THK
• Number Of Pad Holes: 1
• Stud Size: 3/8 INCH
• Color: WHITE
• Die Index: 17/298
• Material: ELECTRO TIN PLATED COPPER
• Overall Length: 3.41 INCH
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED, CHAMFERED; WIRE STRIP LENGTH 2 1/16 INCH; TEMPERATURE RATING 90 DEG C; WITH INSPECTION WINDOW
• Catalog Number: YAZ30TC38
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YAZ
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 300 KCMIL STRANDED, 300 NAVY
• Barrel Type: LONG, SKIVED, STRAIGHT
• Barrel Length: 2 INCH
• Catalog Description: 300 KCMIL CU, ONE HOLE, 3/8 STUD SIZE, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, WHITE COLOR CODE, 17 OR 298 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; White Color; 3.41 Inch Overall Length; 2 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 300 kcmil Stranded, 300 Navy Conductor Size; 3/8 Inch Stud Size; 17/298 Die Index; 1.2 Inch W X 0.16 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 2 1/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YAZ Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810240212
• SKU Name: bur yaz30tc38
