Burndy YAZ382TC38FX 535.3Kcm 2-Hole Lnglug

Overview

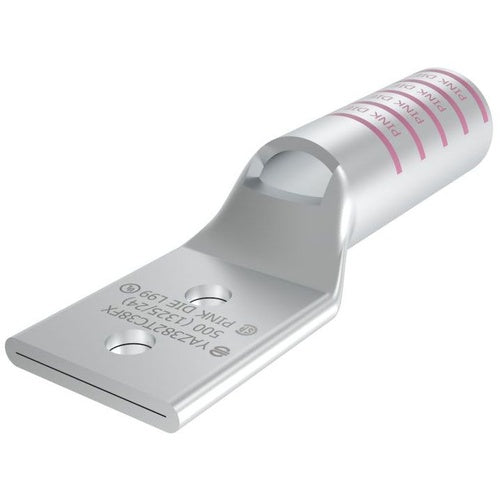

Burndy YAZ382TC38FX 535.3Kcm 2-Hole Lnglug

Product Specifications

• UPC: 78181013538
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 INCH
• Stud Size: 3/8 INCH
• Color: PINK
• Die Index: L99
• Material: ELECTROLYTIC TIN PLATED SEAMLESS COPPER
• Overall Length: 5.72 INCH
• Approval: UL 486-A, CSA
• Additional Information: WITH INSPECTION WINDOW
• Catalog Number: YAZ382TC38FX
• Brand Name: HYLUG[T]
• Model: YAZ-FX
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 1325/24, 535.3 KCMIL, 500 KCMIL (NOM)
• Barrel Type: LONG, STRAIGHT
• Pad Size: 1.81 INCH W
• Catalog Description: 500 KCMIL H,I,K / 550 KCMIL G,H,I,535 DLO CU, TWO HOLE, 3/8 STUD SIZE, 1 HOLE SPACING, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, L99 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electrolytic Tin Plated Seamless Copper Material; Pink Color; 5.72 Inch Overall Length; Copper Conductor Material; UL 486-A, CSA Approval; 600 V to 35 kV Voltage Rating; 1325/24, 535.3 kcmil, 500 kcmil (NOM) Conductor Size; 3/8 Inch Stud Size; L99 Die Index; 1.81 Inch W Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Straight Barrel Type; HYLUG[T] Brand; With Inspection Window; YAZ-FX Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810135389
• SKU Name: bur yaz382tc38fx
