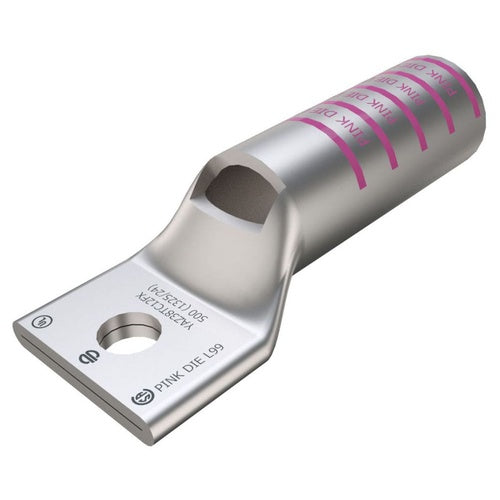

Burndy YAZ38TC12FX 1-Hole Compression Lug

Overview

Burndy YAZ38TC12FX 1-Hole Compression Lug

Product Specifications

• UPC: 78181024206
• Pad Size: 1.84 Inch W x 0.27 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: L99
• Material: Electro-Tin Plated Copper
• Overall Length: 4.77 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 2-7/8 Inch
• Catalog Number: YAZ38TC12FX
• Brand Name: HYLUG[TM]
• Model: YAZ
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 1325/24, 500 KCMIL (Flex), 535.3 KCMIL
• Barrel Type: Long, Skived, Straight
• Barrel Length: 2.81 Inch
• Catalog Description: 500 KCMIL H,I,K / 550 KCMIL G,H,I,535 DLO CU, ONE HOLE, 1/2 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, L99 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Pink Color; 4.77 Inch Overall Length; 2.81 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1325/24, 500 kcmil (Flex), 535.3 kcmil Conductor Size; 1/2 Inch Stud Size; L99 Die Index; 1.84 Inch W X 0.27 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 2-7/8 Inch; YAZ Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810242063
• SKU Name: bur yaz38tc12fx

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
