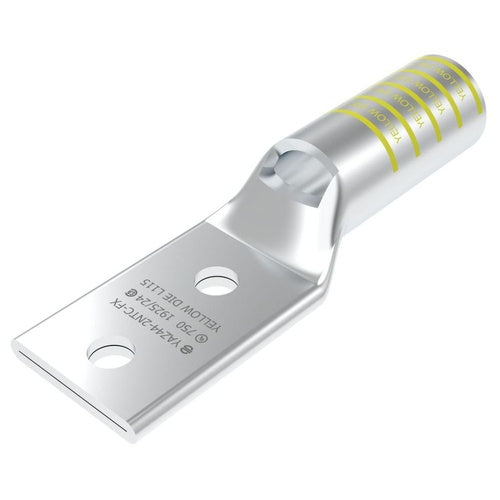

Burndy YAZ442NTCFX 1000Kcm 2-Hole Long Lug

Overview

Burndy YAZ442NTCFX 1000Kcm 2-Hole Long Lug

Product Specifications

• Catalog Description: 2 HOLE HYLUG CU COMPR TERMINAL, LONG BRRL, W/ INSP WINDOW, 777.7(1925/#24) DLO, 750 KCMIL FLEX, 1/2" STUD, YELLOW, L115 INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Yellow Color; 7.09 Inch Overall Length; 3 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1925/24 Stranded, 750 kcmil (Flex), 777.7 kcmil Conductor Size; 1/2 Inch Stud Size; L115 Die Index; 2.19 Inch W X 0.33 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Skived, Straight Barrel Type; HYDENT[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-3/16 Inch; YAZ-FX Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121449
• UPC 12 Digit: 781810228692
• SKU Name: bur yaz442ntcfx
