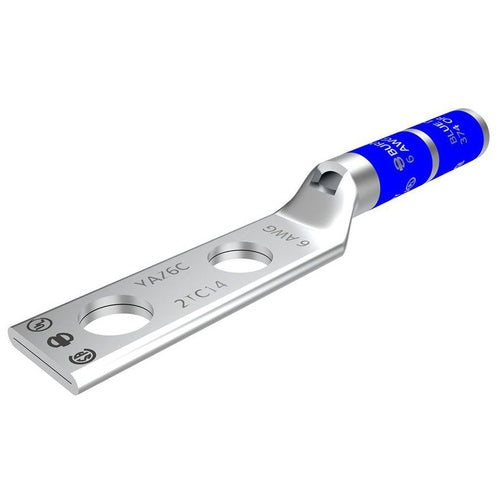

Burndy YAZ6C2-TC14 6Awg 2-Hole Long Lug 25018480

Overview

Burndy YAZ6C2-TC14 6Awg 2-Hole Long Lug 25018480

Product Specifications

• UPC: 78181022320
• Pad Size: 0.45 Inch W x 0.08 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 5/8 Inch
• Stud Size: 1/4 Inch
• Color: Blue
• Die Index: 7/374
• Material: Electro-Tin Plated Copper
• Overall Length: 2.65 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-3/16 Inch
• Catalog Number: YAZ6C2TC14
• Brand Name: HYLUG[TM]
• Model: YAZ-2TC
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 30 (Navy), 6 AWG Stranded (Code)
• Barrel Type: Long, Skived, Straight
• Barrel Length: 1.12 Inch
• Catalog Description: COPPER COMPRESSION LUG, 2 HOLE W/ INSPECTION WINDOW, 6 AWG, 1/4" STUD, 5/8" STUD HOLE SPACING, LONG BARREL, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Blue Color; 2.65 Inch Overall Length; 1.12 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 30 (Navy), 6 AWG Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 7/374 Die Index; 0.45 Inch W X 0.08 Inch Thk Pad Size; 2 Pad Hole(S); 5/8 Inch Pad Hole Spacing; Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-3/16 Inch; YAZ-2TC Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810223208
• SKU Name: bur yaz6c2tc14

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
