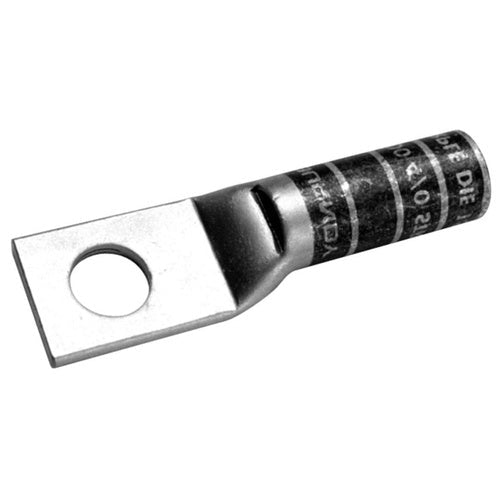

Burndy YAZ6CTC10 1-Hole Compression Lug

Overview

Burndy YAZ6CTC10 1-Hole Compression Lug

Product Specifications

• UPC: 78181022433
• Number Of Pad Holes: 1
• Stud Size: #10
• Color: BLUE
• Die Index: 7
• Material: ELECTRO TIN PLATED COPPER
• Overall Length: 1.89 INCH
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; WIRE STRIP LENGTH 1 3/16 INCH; TEMPERATURE RATING 90 DEG C; WITH INSPECTION WINDOW
• Catalog Number: YAZ6CTC10
• Brand Name: HYLUG[T], BURNDY[R]
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 6 AWG (CODE), 30 NAVY
• Barrel Type: LONG, SKIVED, STRAIGHT
• Barrel Length: 1.12 INCH
• Pad Size: 0.42 INCH W X 0.09 INCH THK
• Catalog Description: CU TUBING HYLUG (ONE HOLE CODE), 1 HOLE WITH INSPECTION WINDOW, #6 AWG CODE,30 NAVY, 600V-35KV, #10 STUD, LONG, COMPRESSION, 0.21 IN BCD, BLUE.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Blue Color; 1.89 Inch Overall Length; 1.12 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 6 AWG (Code), 30 Navy Conductor Size; #10 Stud Size; 7 Die Index; 0.42 Inch W X 0.09 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Wire Strip Length 1 3/16 Inch; Temperature Rating 90 Deg C; With Inspection Window
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121449
• UPC 12 Digit: 781810224335
• SKU Name: bur yaz6ctc10

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
