Burndy YAZ6CTC12 1-Hole Compression Lug

Overview

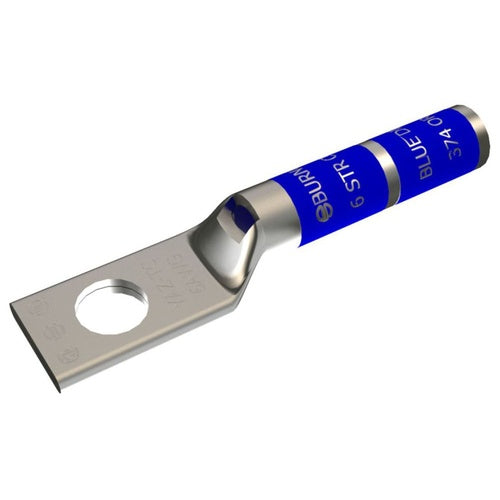

Burndy YAZ6CTC12 1-Hole Compression Lug

Product Specifications

• Catalog Description: 6 AWG CU, ONE HOLE, 1/2 STUD SIZE, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 7 OR 374 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Blue Color; 2.46 Inch Overall Length; 1.12 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 30 (Navy), 6 AWG Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 7/374 Die Index; 0.75 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-3/16 Inch; YAZ Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810239414
• SKU Name: bur yaz6ctc12

Resources

• Manufacturer Spec Sheet
