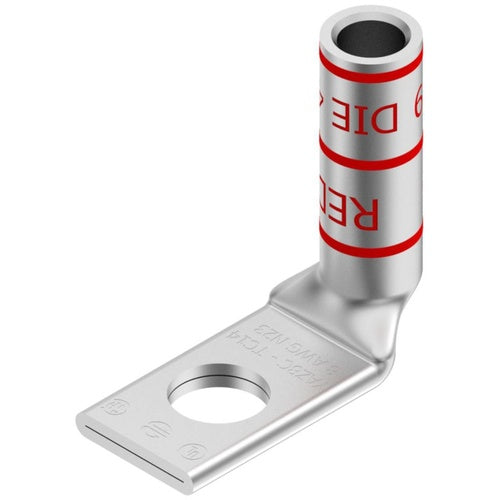

Burndy YAZ8CTC1490 8Awg 1-Hole Lug

Overview

Burndy YAZ8CTC1490 8Awg 1-Hole Lug

Product Specifications

• Catalog Description: 8 AWG CU, ONE HOLE, 1/4 STUD SIZE, LONG BARREL, INSPECTION WINDOW INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 49 DIE INDEX.
• Full Technical Description: Electro Tin Plated Copper Material; Red Color; 0.87 Inch Overall Length; 0.75 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 37/24, 6 AWG (Weld), 6 AWG Conductor Size; 1/4 Inch Stud Size; 49 Die Index; 0.44 Inch W X 0.08 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, 90 Deg Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled; Wire Strip Length 7/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YAZ Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810239322
• SKU Name: bur yaz8ctc1490

Resources

• Manufacturer Spec Sheet
