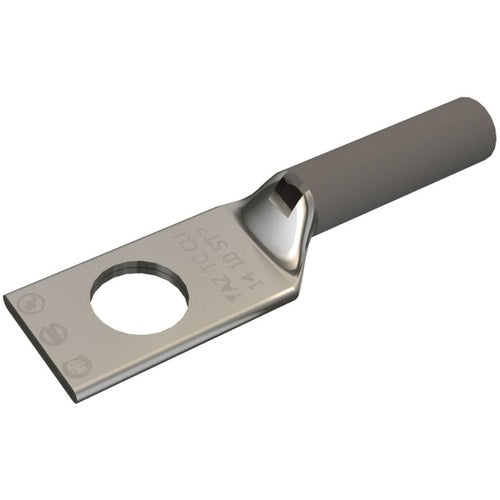

Burndy YAZV10-TC14 1-Hole Compression Lug 25020312

Overview

Burndy YAZV10-TC14 1-Hole Compression Lug 25020312

Product Specifications

• UPC: 78181023924
• Pad Size: 0.41 Inch W x 0.05 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Material: Electro-Tin Plated Copper
• Overall Length: 1.52 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 3/4 Inch
• Catalog Number: YAZV10TC14
• Brand Name: HYLUG[TM]
• Model: YAZ
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 14 to 10 AWG Solid/Stranded (Code)
• Barrel Type: Long, Skived, Straight
• Barrel Length: 0.69 Inch
• Catalog Description: 14-10 AWG - 12-10 SOL CU, ONE HOLE, 1/4 STUD SIZE, LONG BARREL, INSPECTION WINDOW INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; 1.52 Inch Overall Length; 0.69 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 14 to 10 AWG Solid/Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 0.41 Inch W X 0.05 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 3/4 Inch; YAZ Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810239247
• SKU Name: bur yazv10tc14

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
