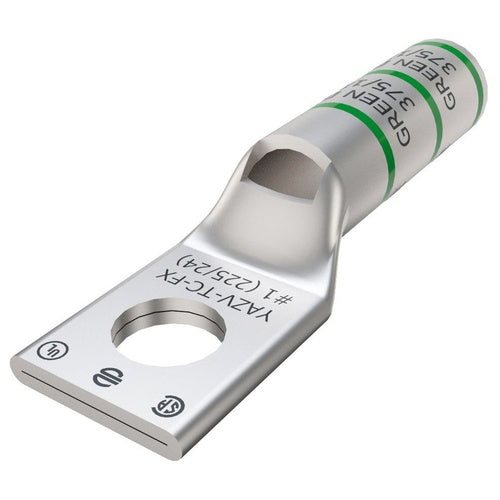

Burndy YAZV1CTC38FX 1-Hole Compression Lug

Overview

Burndy YAZV1CTC38FX 1-Hole Compression Lug

Product Specifications

• Catalog Description: 1 FLEX G,H,I,K,M,DLO, 1 AWG (B/C) CU, ONE HOLE, 3/8 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GREEN COLOR CODE, 11 OR 375 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Green Color; 2.59 Inch Overall Length; 1.38 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 174/24 to 225/24, 1 AWG (Weld Flex) Conductor Size; 3/8 Inch Stud Size; 11/375 Die Index; 0.75 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 1 7/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YAZV Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810241400
• SKU Name: bur yazv1ctc38fx

Resources

• Technical Drawing
• Manufacturer Spec Sheet
