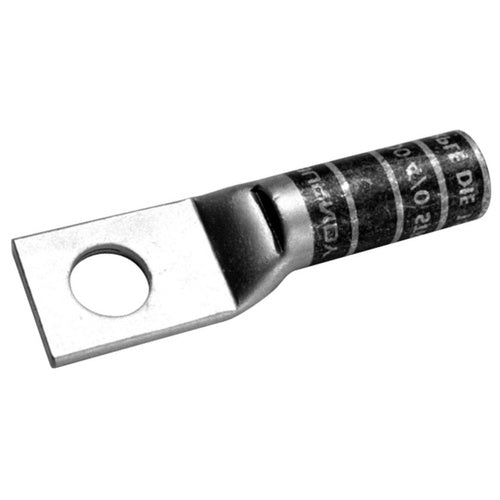

Burndy YAZV25TC38FX 1-Hole Compression Lug

Overview

Burndy YAZV25TC38FX 1-Hole Compression Lug

Product Specifications

• Catalog Description: 1/0 FLEX G,H,I,K,M,DLO, 1/0 AWG (B/C) CU, ONE HOLE, 3/8 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, 12 OR 348 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Pink Color; 2.75 Inch Overall Length; 1.5 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 275/24, 1/0 AWG (Weld Flex), 1/0 AWG Stranded Conductor Size; 3/8 Inch Stud Size; 12/348 Die Index; 0.83 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-9/16 Inch; YAZV Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810241462
• SKU Name: bur yazv25tc38fx
