Burndy YAZV282TC14E2FX 4/0Awg 2-Hole Lug

Overview

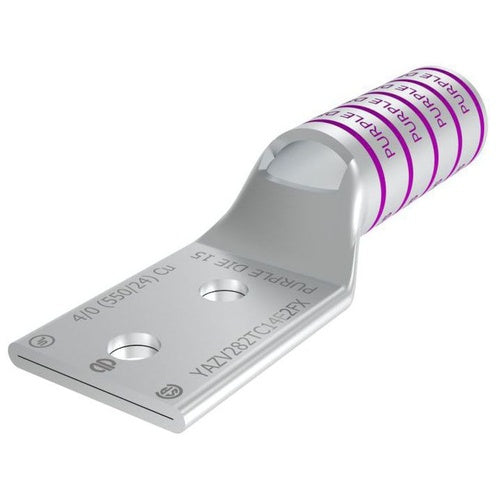

Burndy YAZV282TC14E2FX 4/0Awg 2-Hole Lug

Product Specifications

• Catalog Description: 4/0 FLEX G,H,I,K,M,DLO, 4/0 AWG CU, TWO HOLE, 1/4 STUD SIZE, 3/4 HOLE SPACING, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PURPLE COLOR CODE, 15 DIE INDEX.
• Full Technical Description: Electro Tin Plated Copper Material; Purple Color; 3.52 Inch Overall Length; 1.62 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 550/24, 4/0 AWG (Weld Flex), 4/0 AWG (Code) Conductor Size; 1/4 Inch Stud Size; 15 Die Index; 1.14 Inch W X 0.15 Inch Thk Pad Size; 2 Pad Hole(S); 3/4 Inch Pad Hole Spacing; Long, Skived, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled; Wire Strip Length 1 11/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YAZ-FX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810228524
• SKU Name: bur yazv282tc14e2fx

Resources

• Manufacturer Spec Sheet
