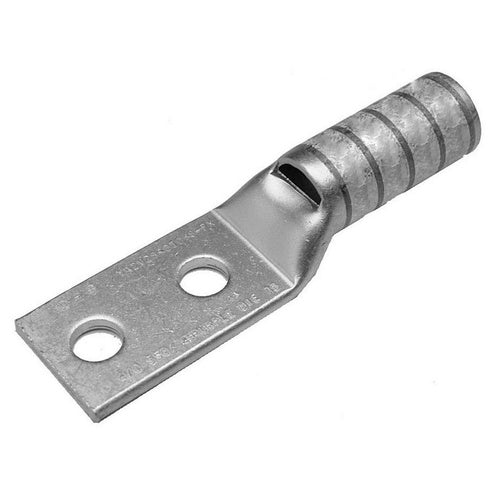

Burndy YAZV2C2NTCFX 2Awg 2-Hole Lng Lug

Overview

Burndy YAZV2C2NTCFX 2Awg 2-Hole Lng Lug

Product Specifications

• Catalog Description: 2 FLEX G,H,I,K,M,DLO, 2 AWG CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 10 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Brown Color; 4.76 Inch Overall Length; 1.38 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 125/24 to 150/24 Dlo, 2 AWG (Weld Flex), 2 AWG Stranded Conductor Size; 1/2 Inch Stud Size; 10 Die Index; 0.83 Inch W X 0.1 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-7/16 Inch; Cable Entry Type Chamfered; YAZ-FX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810228326
• SKU Name: bur yazv2c2ntcfx

Resources

• Manufacturer Spec Sheet
