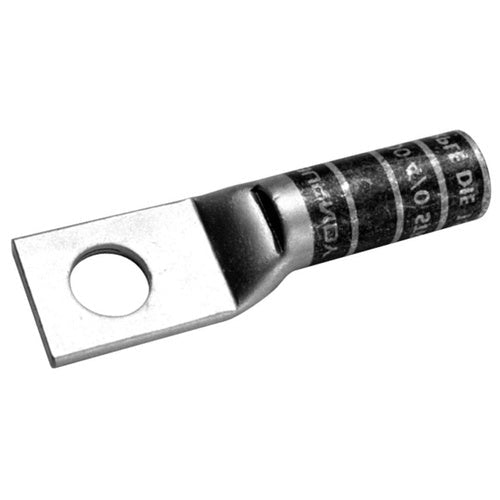

Burndy YAZV4CTC38FX 1-Hole Compressn Lug

Overview

Burndy YAZV4CTC38FX 1-Hole Compressn Lug

Product Specifications

• Catalog Description: 4 FLEX G,H,I,K,M,DLO, 4 AWG CU, ONE HOLE, 3/8 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GRAY COLOR CODE, 8 OR 346 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Gray Color; 2.42 Inch Overall Length; 1.25 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 91/24 to 105/24, 4 AWG (Weld Flex), 4 AWG Stranded Conductor Size; 3/8 Inch Stud Size; 8/346 Die Index; 0.58 Inch W X 0.08 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-5/16 Inch; YAZV Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810241226
• SKU Name: bur yazv4ctc38fx
