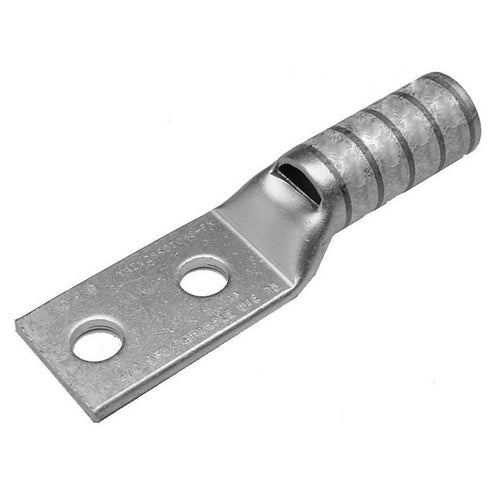

Burndy YAZV6C2TC14E2FX 6Awg 2-Hole Long Lug

Overview

Burndy YAZV6C2TC14E2FX 6Awg 2-Hole Long Lug

Product Specifications

• UPC: 78181022814
• Pad Size: 0.48 INCH W X 0.08 INCH THK
• Number Of Pad Holes: 2
• Pad Hole Spacing: 3/4 INCH
• Stud Size: 1/4 INCH
• Color: BLUE
• Die Index: 7/374
• Material: ELECTRO TIN PLATED COPPER
• Overall Length: 2.35 INCH
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED; WIRE STRIP LENGTH 1 3/16 INCH; TEMPERATURE RATING 90 DEG C; WITH INSPECTION WINDOW
• Catalog Number: YAZV6C2TC14E2FX
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YAZ-FX
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 61/24, 6 AWG (WELD FLEX), 6 AWG (CODE)
• Barrel Type: LONG, SKIVED, STRAIGHT
• Barrel Length: 0.75 INCH
• Catalog Description: 6 FLEX G,H,I,K,M,DLO, 6 AWG CU, TWO HOLE, 1/4 STUD SIZE, 3/4 HOLE SPACING, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 7 OR 374 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Blue Color; 2.35 Inch Overall Length; 0.75 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 61/24, 6 AWG (Weld Flex), 6 AWG (Code) Conductor Size; 1/4 Inch Stud Size; 7/374 Die Index; 0.48 Inch W X 0.08 Inch Thk Pad Size; 2 Pad Hole(S); 3/4 Inch Pad Hole Spacing; Long, Skived, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled; Wire Strip Length 1 3/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YAZ-FX Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810228142
• SKU Name: bur yazv6c2tc14e2fx

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
