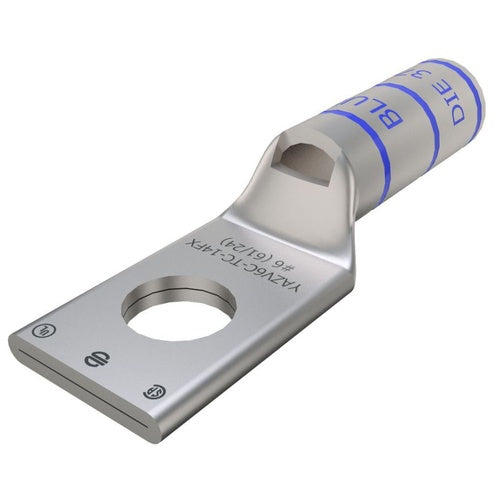

Burndy YAZV6CTC14FX 1-Hole Compression Lug

Overview

Burndy YAZV6CTC14FX 1-Hole Compression Lug

Product Specifications

• UPC: 78181024113
• Pad Size: 0.48 Inch W x 0.08 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Blue
• Die Index: 7/374
• Material: Electro-Tin Plated Copper
• Overall Length: 1.59 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 13/16 Inch
• Catalog Number: YAZV6CTC14FX
• Brand Name: HYLUG[TM]
• Model: YAZV
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 61/24, 6 AWG (Weld Flex), 6 AWG Stranded
• Barrel Type: Long, Skived, Straight
• Barrel Length: 0.75 Inch
• Catalog Description: 6 FLEX G,H,I,K,M,DLO, 6 AWG CU, ONE HOLE, 1/4 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 7 OR 374 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Blue Color; 1.59 Inch Overall Length; 0.75 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 61/24, 6 AWG (Weld Flex), 6 AWG Stranded Conductor Size; 1/4 Inch Stud Size; 7/374 Die Index; 0.48 Inch W X 0.08 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 13/16 Inch; YAZV Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810241134
• SKU Name: bur yazv6ctc14fx

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
