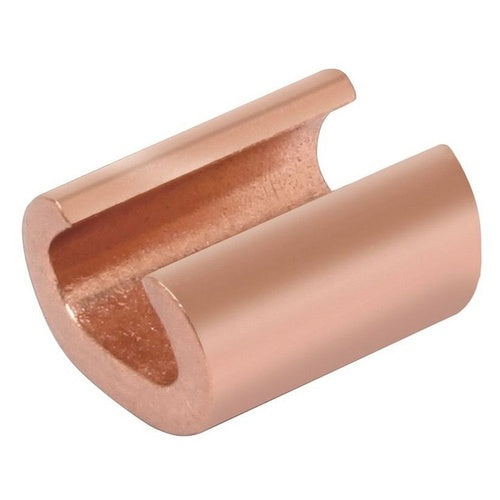

Burndy YC10C10 10Str Copper Tap Connector

Overview

Burndy YC10C10 10Str Copper Tap Connector

Product Specifications

• UPC: 78181011460
• Minimum Tap Conductor Size: 12 AWG Solid
• Maximum Tap Conductor Size: 10 AWG Stranded
• Die Index: 238
• Body Material: Wrot Copper
• Approval: CSA
• Additional Information: RoHS Compliant; Length 3/8 Inch
• Catalog Number: YC10C10
• Brand Name: CRIMPIT[TM]
• Model: YC-C
• Voltage Rating: 35 Kilovolt
• Shape: C
• Conductor Material: Copper
• Minimum Run Conductor Size: 12 AWG Solid
• Maximum Run Conductor Size: 10 AWG Stranded
• Catalog Description: RANGE-TAKING COMPRESSION TAP CONNECTOR MADE OF PURE COPPER. FOR COPPER TO COPPER APPLICATIONS AND USED FOR DEADENDING.
• Category: Large Terminals & Connectors
• Full Technical Description: 12 AWG Solid min. Run Conductor Size; 10 AWG Stranded Max. Run Conductor Size; 12 AWG Solid min. Tap Conductor Size; 10 AWG Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; CSA Approval; 35 Kilovolt Voltage Rating; Wrot Copper Body Material; 238 Die Index; CRIMPIT[TM] Brand; RoHS Compliant; Length 3/8 Inch; YC-C Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810114605
• SKU Name: bur yc10c10
