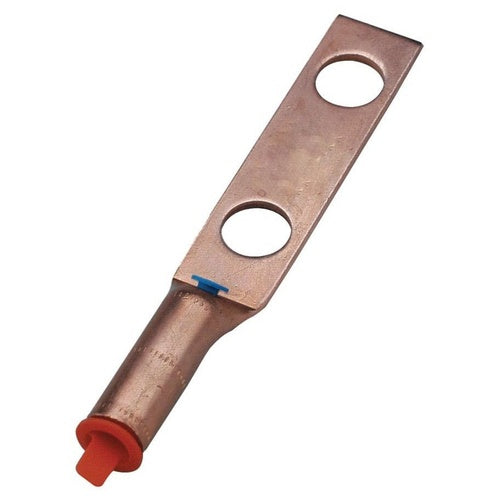

Burndy YGA282N 4/0 2-Hole Ground Terminal

Overview

Burndy YGA282N 4/0 2-Hole Ground Terminal

Product Specifications

• UPC: 78181022032
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Die Index: 15
• Material: Copper
• Overall Length: 5.17 Inch
• Approval: UL 467/486A, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Wire Strip Length 1-11/16 Inch
• Catalog Number: YGA282N
• Brand Name: HYGROUND[R], HYLUG[TM]
• Model: YGA
• Conductor Material: Copper
• Conductor Size: 4/0 AWG Stranded
• Barrel Type: Long, Straight
• Barrel Length: 1.57 Inch
• Pad Size: 1 Inch W x 0.14 Inch Thk
• Catalog Description: HYGROUND GROUNDING IRREVERSIBLE COMPRESSION TERMINALS: 2-HOLE WITH INSPECTION WINDOW; ACCOMMODATES: 4/0 AWG; 1/2" STUD; 1-3/4" SPACING
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; 5.17 Inch Overall Length; 1.57 Inch Barrel Length; Copper Conductor Material; UL 467/486A, CSA Approval; 4/0 AWG Stranded Conductor Size; 1/2 Inch Stud Size; 15 Die Index; 1 Inch W X 0.14 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight Barrel Type; HYGROUND[R], HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Wire Strip Length 1-11/16 Inch; YGA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810220320
• SKU Name: bur yga282n
