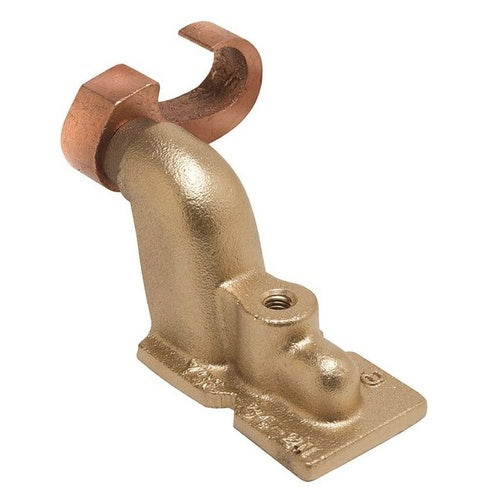

Burndy YGF29-2N Compression Ground Connector Plate

Overview

Burndy YGF29-2N Compression Ground Connector Plate

Product Specifications

• UPC: 78181022050
• Process: Cast
• Conductor Size: 2 AWG to 250 KCMIL
• Number Of Holes: 2
• Approval: UL 467, CSA
• Additional Information: RoHS Compatible; Height 3.62 Inch; Depth 3.25 Inch; Concrete Construction
• Catalog Number: YGF292N
• Brand Name: HYGROUND[R]
• Model: YGF
• Type: Grounding Plate
• Length: 5.78 Inch
• Width: 2 Inch
• Thickness: 1.31 Inch
• Material: Copper Alloy
• Catalog Description: COMPRESSION GROUNDING PLATE; COPPER; 2-HOLE; ACCOMMODATES: #2 AWG - 250 KCMIL; 1/2" STUD; 1-3/4" STUD HOLE SPACING
• Category: Large Terminals & Connectors
• Full Technical Description: Grounding Plate Type; Copper Alloy Material; 5.78 Inch; 2 Inch; UL 467, CSA Approval; 1.31 Inch Thickness; Cast Process; 2 AWG to 250 kcmil Conductor Size; 2 Hole(S); HYGROUND[R] Brand; RoHS Compatible; Height 3.62 Inch; Depth 3.25 Inch; Concrete Construction; YGF Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Grounding Plate
• Unspsc: 39121448
• UPC 12 Digit: 781810220504
• SKU Name: bur ygf292n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
