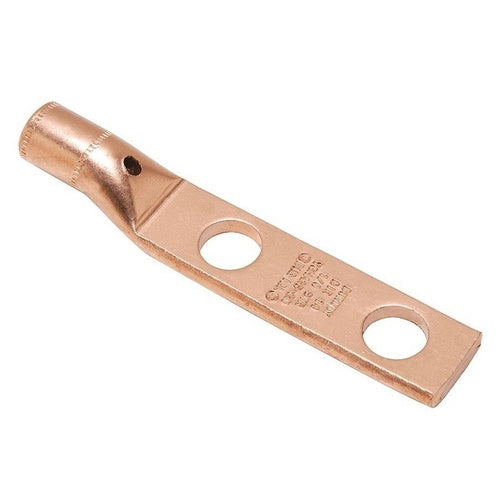

Burndy YGHA292N 250Mcm Compression Ground Tap

Overview

Burndy YGHA292N 250Mcm Compression Ground Tap

Product Specifications

• UPC: 78181022038
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Die Index: 18
• Material: Copper
• Overall Length: 4.94 Inch
• Approval: UL 467/468A/468B, IEEE 837, CSA
• Additional Information: RoHS Compatible; Includes Inspection Probe Hole
• Catalog Number: YGHA292N
• Brand Name: HYGROUND[R], HYLUG[TM]
• Model: YGHA
• Conductor Material: Copper
• Conductor Size: 250 KCMIL Stranded
• Barrel Type: Short
• Barrel Length: 1.18 Inch
• Pad Size: 1.28 Inch W x 0.34 Inch Thk
• Catalog Description: COPPER COMPRESSION LUG, HEAVY DUTY, 2 HOLE W/ INSPECTION PROBE HOLE, 250 KCMIL, 1/2" STUD, 1-3/4" STUD HOLE SPACING, SHORT BARREL.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; 4.94 Inch Overall Length; 1.18 Inch Barrel Length; Copper Conductor Material; UL 467/468A/468B, IEEE 837, CSA Approval; 250 kcmil Stranded Conductor Size; 1/2 Inch Stud Size; 18 Die Index; 1.28 Inch W X 0.34 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Short Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Probe Hole; YGHA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810220382
• SKU Name: bur ygha292n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
