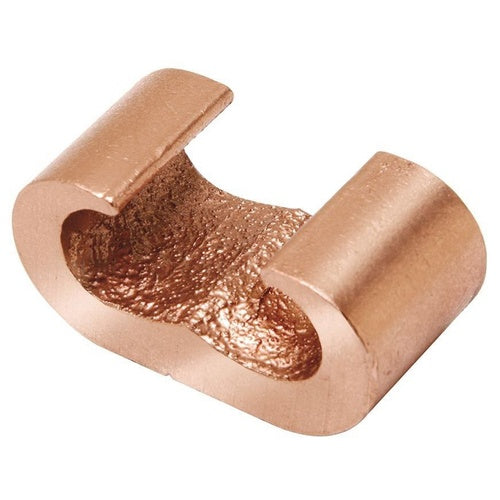

Burndy YGHC29C26 3/0 Compression Ground Tap

Overview

Burndy YGHC29C26 3/0 Compression Ground Tap

Product Specifications

• UPC: 78181022104
• Maximum Tap Conductor Size: 2/0 AWG Stranded
• Die Index: 997
• Body Material: Copper
• Approval: UL 96/467, CSA
• Additional Information: RoHS Compliant; Rod Size 1/2 to 5/8 Inch
• Catalog Number: YGHC29C26
• Brand Name: HYGROUND[R], HYTAP[TM]
• Model: YGHC-C
• Shape: C
• Conductor Material: Copper
• Minimum Run Conductor Size: 3/0 AWG Stranded
• Maximum Run Conductor Size: 250 KCMIL
• Minimum Tap Conductor Size: 6 AWG Solid
• Catalog Description: COPPER COMPRESSION C CONNECTOR, 3/0 AWG(STR) - 250 KCMIL, 1/2" OR 5/8" ROD (RUN) & 6 AWG(SOL) - 2/0 AWG(STR) (TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: 3/0 AWG Stranded min. Run Conductor Size; 250 kcmil Max. Run Conductor Size; 6 AWG Solid min. Tap Conductor Size; 2/0 AWG Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL 96/467, CSA Approval; Copper Body Material; 997 Die Index; Hyground [R], Hytap Brand; RoHS Compliant; Rod Size 1/2 to 5/8 Inch; YGHC-C Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810221044
• SKU Name: bur yghc29c26
