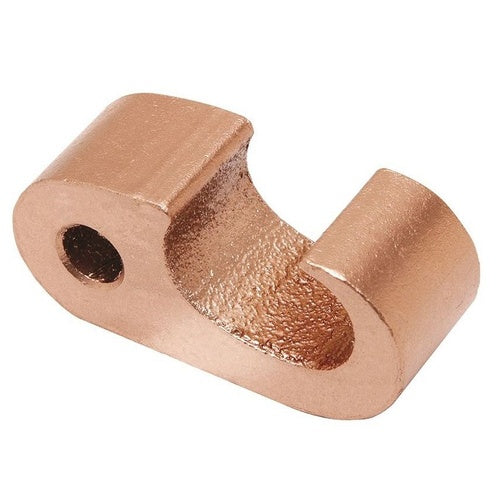

Burndy YGHP29C6W6W C-Tap 3/8"

Overview

Burndy YGHP29C6W6W C-Tap 3/8"

Product Specifications

• UPC: 78181008529
• Minimum Tap Conductor Size: 8 AWG Solid
• Maximum Tap Conductor Size: 6 AWG Stranded
• Die Index: 997
• Body Material: Copper
• Approval: UL 467
• Additional Information: RoHS Compatible; Length 0.75 Inch; Rod Size 1/2 to 5/8 Inch; Application Direct Burial in Earth, Concrete
• Catalog Number: YGHP29C6W6W
• Brand Name: HYGROUND[R], HYTAP[TM]
• Model: YGHC-C
• Shape: C
• Number Of Taps: 2
• Conductor Material: Copper
• Minimum Run Conductor Size: 1/0 AWG Stranded
• Maximum Run Conductor Size: 250 KCMIL Stranded
• Catalog Description: CU COMPRESSION GROUND ROD CONNECTOR, #8 SOL - #6 STR, 1/2" - 5/8" ROD DIA.
• Category: Large Terminals & Connectors
• Full Technical Description: 1/0 AWG Stranded min. Run Conductor Size; 250 kcmil Stranded Max. Run Conductor Size; 8 AWG Solid min. Tap Conductor Size; 6 AWG Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL 467 Approval; Copper Body Material; 997 Die Index; 2 Tap(S); HYGROUND[R], HYTAP[TM] Brand; RoHS Compatible; Length 0.75 Inch; Rod Size 1/2 to 5/8 Inch; Application Direct Burial in Earth, Concrete; YGHC-C Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810085295
• SKU Name: bur yghp29c6w6w

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
