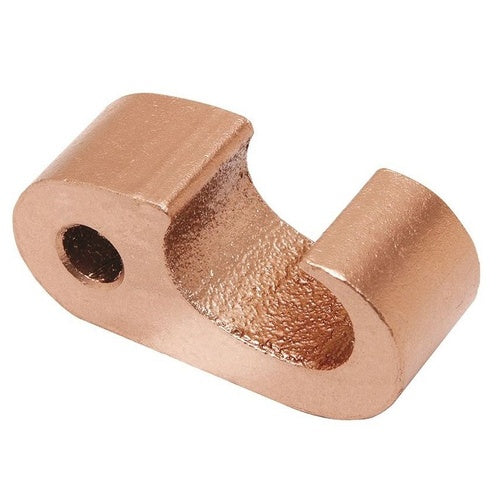

Burndy YGHP2C2 2Str Compression Ground Tap

Overview

Burndy YGHP2C2 2Str Compression Ground Tap

Product Specifications

• UPC: 78181022091
• Minimum Tap Conductor Size: 6 AWG Solid
• Maximum Tap Conductor Size: 2 AWG Stranded
• Die Index: O
• Body Material: Copper
• Approval: UL 96, UL 467, CSA
• Additional Information: RoHS Compatible; Length 0.75 Inch; Application Direct Burial in Earth, Concrete
• Catalog Number: YGHP2C2
• Brand Name: HYGROUND[R], HYTAP[TM]
• Model: YGHC-C
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 6 AWG Solid
• Maximum Run Conductor Size: 2 AWG Stranded
• Catalog Description: CU COMPRESSION GROUND TAP CONNECTOR, #6 SOL- #2 STR(RUN & TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: 6 AWG Solid min. Run Conductor Size; 2 AWG Stranded Max. Run Conductor Size; 6 AWG Solid min. Tap Conductor Size; 2 AWG Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL 96, UL 467, CSA Approval; Copper Body Material; O Die Index; 1 Tap(S); HYGROUND[R], HYTAP[TM] Brand; RoHS Compatible; Length 0.75 Inch; Application Direct Burial in Earth, Concrete; YGHC-C Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810220917
• SKU Name: bur yghp2c2

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
