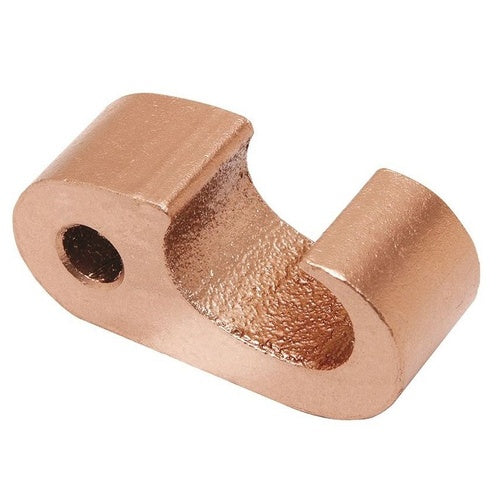

Burndy YGHP34C2 500 Compression Ground Tap

Overview

Burndy YGHP34C2 500 Compression Ground Tap

Product Specifications

• UPC: 78181022095
• Maximum Tap Conductor Size: 2 AWG Stranded
• Die Index: 998
• Body Material: Wrot Copper
• Approval: UL 96/467, CSA
• Additional Information: RoHS Compliant
• Catalog Number: YGHP34C2
• Brand Name: HYGROUND[R], HYTAP[TM]
• Model: YGHP-C
• Shape: C
• Conductor Material: Copper
• Minimum Run Conductor Size: 250 KCMIL
• Maximum Run Conductor Size: 500 KCMIL
• Minimum Tap Conductor Size: 4 AWG Solid
• Catalog Description: CU COMPRESSION GROUND ROD CONNECTOR, #4 SOL - #2 STR, 5/8" - 3/4" ROD DIA.
• Category: Large Terminals & Connectors
• Full Technical Description: 250 kcmil min. Run Conductor Size; 500 kcmil Max. Run Conductor Size; 4 AWG Solid min. Tap Conductor Size; 2 AWG Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL 96/467, CSA Approval; Wrot Copper Body Material; 998 Die Index; HYGROUND[R], HYTAP[TM] Brand; RoHS Compliant; YGHP-C Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810220955
• SKU Name: bur yghp34c2

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
