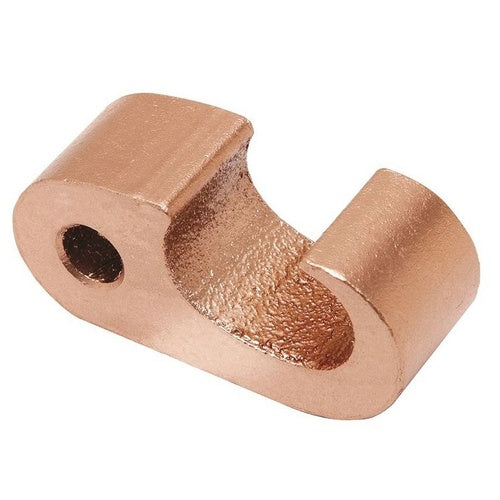

Burndy YGHP34C29 500Mcm Compression Ground Tap

Overview

Burndy YGHP34C29 500Mcm Compression Ground Tap

Product Specifications

• UPC: 78181022097
• Maximum Tap Conductor Size: 250 KCMIL
• Die Index: 998
• Body Material: Wrot Copper
• Approval: UL 96/467, CSA
• Additional Information: RoHS Compliant
• Catalog Number: YGHP34C29
• Brand Name: HYGROUND[R], HYTAP[TM]
• Model: YGHP-C
• Shape: C
• Conductor Material: Copper
• Minimum Run Conductor Size: 250 KCMIL
• Maximum Run Conductor Size: 500 KCMIL
• Minimum Tap Conductor Size: 3/0 AWG Stranded
• Catalog Description: CU COMPRESSION GROUND ROD CONNECTOR, 3/0 STR - 250 KCMIL, 5/8" - 3/4" ROD DIA.
• Category: Large Terminals & Connectors
• Full Technical Description: 250 kcmil min. Run Conductor Size; 500 kcmil Max. Run Conductor Size; 3/0 AWG Stranded min. Tap Conductor Size; 250 kcmil Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL 96/467, CSA Approval; Wrot Copper Body Material; 998 Die Index; Hyground [R], Hytap Brand; RoHS Compliant; YGHP-C Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810220979
• SKU Name: bur yghp34c29
