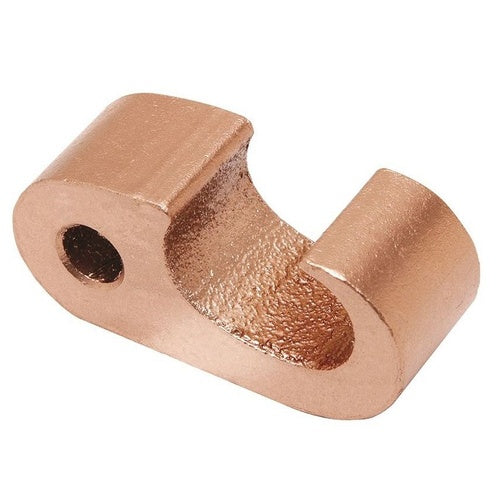

Burndy YGHP34C34 500 Compression Ground Tap

Overview

Burndy YGHP34C34 500 Compression Ground Tap

Product Specifications

• UPC: 78181022098
• Minimum Tap Conductor Size: 350 KCMIL
• Maximum Tap Conductor Size: 500 KCMIL
• Die Index: 1011
• Body Material: Copper
• Approval: UL 96, UL 467, CSA
• Additional Information: RoHS Compatible; Length 2.75 Inch; Rod Size 5/8 to 3/4 Inch; Application Direct Burial in Earth, Concrete
• Catalog Number: YGHP34C34
• Brand Name: HYGROUND[R], HYTAP[TM]
• Model: YGHC-C
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 250 KCMIL Stranded
• Maximum Run Conductor Size: 500 KCMIL Stranded
• Catalog Description: CU COMPRESSION GROUND ROD CONNECTOR, 350 KCMIL - 500 KCMIL, 5/8" - 3/4" ROD DIA.
• Category: Large Terminals & Connectors
• Full Technical Description: 250 kcmil Stranded min. Run Conductor Size; 500 kcmil Stranded Max. Run Conductor Size; 350 kcmil min. Tap Conductor Size; 500 kcmil Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL 96, UL 467, CSA Approval; Copper Body Material; 1011 Die Index; 1 Tap(S); HYGROUND[R], HYTAP[TM] Brand; RoHS Compatible; Length 2.75 Inch; Rod Size 5/8 to 3/4 Inch; Application Direct Burial in Earth, Concrete; YGHC-C Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810220986
• SKU Name: bur yghp34c34
