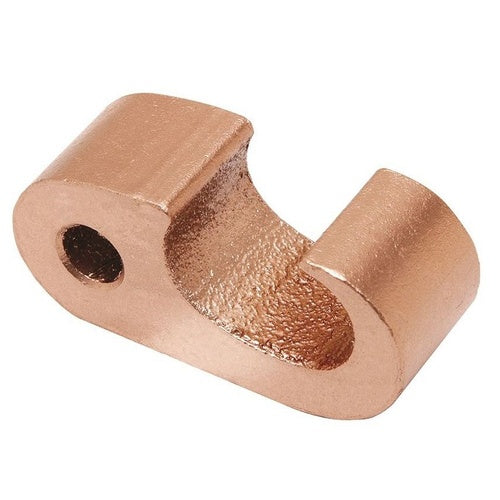

Burndy YGHP58C2W-2 1/2-5/8 Hytap

Overview

Burndy YGHP58C2W-2 1/2-5/8 Hytap

Product Specifications

• UPC: 78181000218
• Die Index: 997
• Body Material: Copper
• Approval: UL 467, CSA
• Additional Information: RoHS Compatible; Size 0.75 Inch L x 0.94 Inch W x 1.9 Inch H; Rod Size 1/2 to 5/8 Inch; Application Ground Rod, Direct Burial in Earth, Concrete
• Catalog Number: YGHP58C2W2
• Brand Name: HYGROUND[R], HYTAP[TM]
• Model: YGHC-C
• Shape: C
• Conductor Material: Copper
• Maximum Run Conductor Size: 2 AWG
• Minimum Tap Conductor Size: 6 AWG
• Maximum Tap Conductor Size: 2 AWG
• Catalog Description: HIGH CONDUCTIVITY CU COMPRESSION GROUND TAP CONNECTOR, 1/2" - 5/8" ROD DIA, #6 - #2 SOL(TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: 2 AWG Max. Run Conductor Size; 6 AWG min. Tap Conductor Size; 2 AWG Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL 467, CSA Approval; Copper Body Material; 997 Die Index; HYGROUND[R], HYTAP[TM] Brand; RoHS Compatible; Size 0.75 Inch L X 0.94 Inch W X 1.9 Inch H; Rod Size 1/2 to 5/8 Inch; Application Ground Rod, Direct Burial in Earth, Concrete; YGHC-C Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810002186
• SKU Name: bur yghp58c2w2
