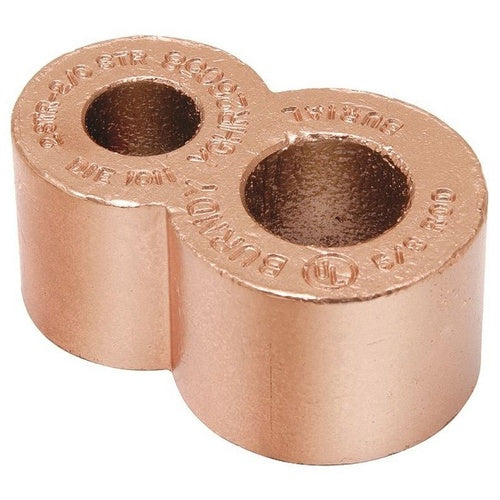

Burndy YGHR26C58 2/0 Compression Ground Tap

Overview

Burndy YGHR26C58 2/0 Compression Ground Tap

Product Specifications

• UPC: 78181022071
• Conductor Material: Copper
• Grounding Rod Size: 5/8 Inch Dia
• Application: Direct Burial
• Approval: UL 467, CSA
• Additional Information: RoHS Compatible
• Catalog Number: YGHR26C58
• Brand Name: HYGROUND[R], HYTAIL[TM]
• Model: YGHR-C
• Type: Irreversible
• Length: 0.88 Inch
• Height: 1.97 Inch
• Material: Copper
• Conductor Size: 2 to 2/0 AWG Stranded
• Catalog Description: COPPER COMPRESSION CONNECTOR, 2 AWG(STR)-2/0 AWG(STR), 5/8" GROUND ROD.
• Category: Large Terminals & Connectors
• Full Technical Description: Irreversible Type; Copper Material; 0.88 Inch; 1.97 Inch; Copper Conductor Material; UL 467, CSA Approval; Direct Burial Application; 2 to 2/0 AWG Stranded Conductor Size; 5/8 Inch Dia Grounding Rod Size; HYGROUND[R], HYTAIL[TM] Brand; RoHS Compatible; YGHR-C Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Grounding Connector
• Unspsc: 39121427
• UPC 12 Digit: 781810220719
• SKU Name: bur yghr26c58

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
