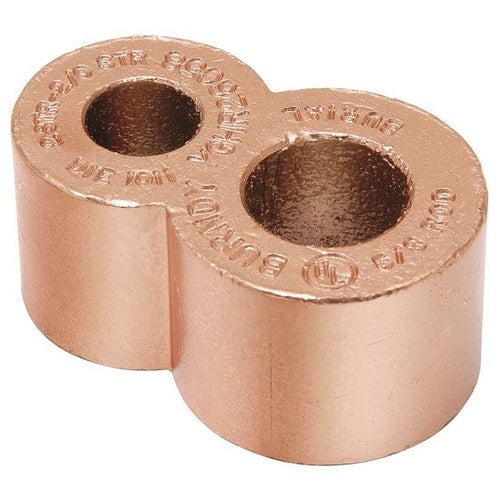

Burndy YGHR29C34 250 Compression Ground Tap

Overview

Burndy YGHR29C34 250 Compression Ground Tap

Product Specifications

• UPC: 78181022075
• Additional Information: RoHS Compliant
• Catalog Number: YGHR29C34
• Brand Name: HYGROUND[R], HYTAIL[TM]
• Model: YGHR-C
• Conductor Material: Copper
• Minimum Run Conductor Size: 4/0 AWG
• Maximum Run Conductor Size: 250 KCMIL
• Body Material: Copper
• Approval: UL 467, CSA
• Catalog Description: COPPER COMPRESSION CONNECTOR, 4/0 AWG(STR)-250 KCMIL, 3/4" GROUND ROD.
• Category: Large Terminals & Connectors
• Full Technical Description: 4/0 AWG min. Run Conductor Size; 250 kcmil Max. Run Conductor Size; Copper Conductor Material; UL 467, CSA Approval; Copper Body Material; HYGROUND[R], HYTAIL[TM] Brand; RoHS Compliant; YGHR-C Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810220757
• SKU Name: bur yghr29c34

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
